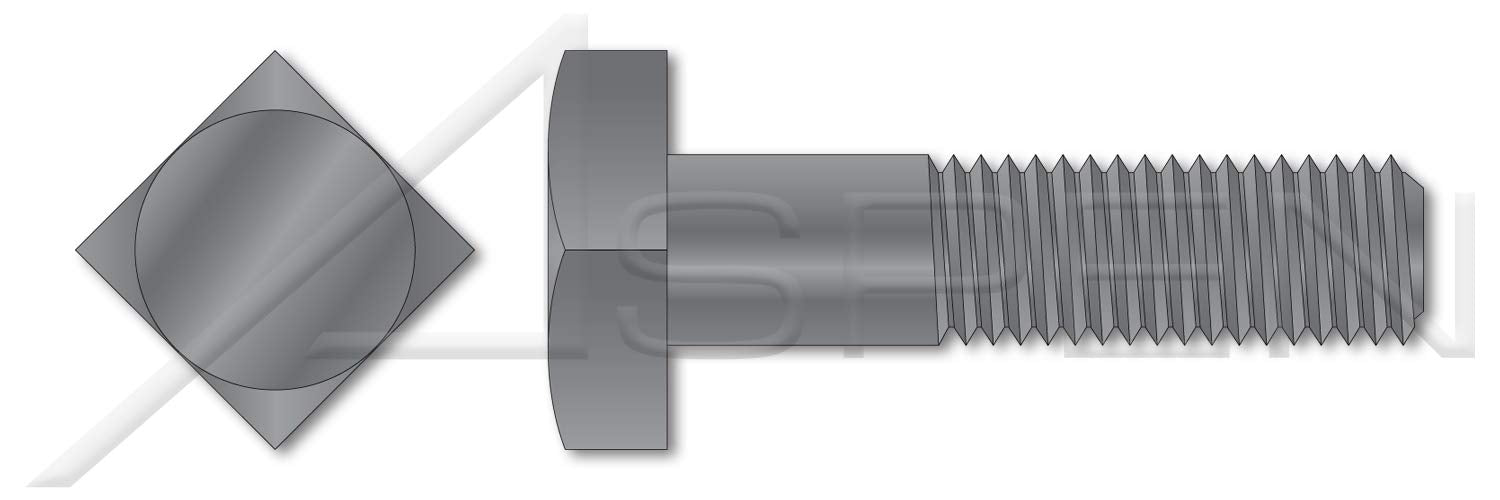

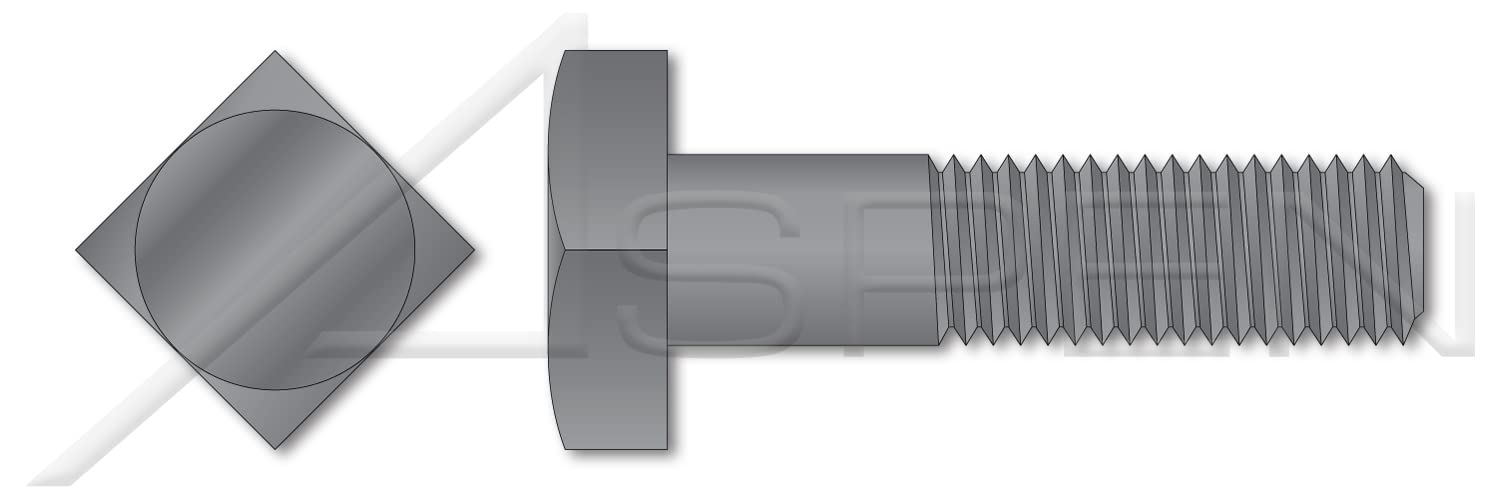

(250 pcs) 1/2'-13 X 1-3/4', Machine Bolts, Square Head, Steel

DIMENSIONAL ATTRIBUTES | Diameter (Nominal): 1/2' | Thread Pitch: 13 | Diameter (Dimension): 0.5' | Diameter (Minimum): 0.482' | Diameter (Maximum): 0.515' | Length (Nominal): 1-3/4' | Thread Length (Nominal): 1.25' | Across Flats (Basic): 3/4' | Across Flats (Minimum): 0.725' | Across Flats (Maximum): 0.75' | Head Height, Overall: 0.328' | Head Height, Overall (Minimum): 0.308' | Head Height, Overall (Maximum): 0.348' | PRODUCT ATTRIBUTES | Category: Machine Bolts | System of Measurement: Inch | Brand: Aspen Fasteners | Head Style: Square Head | Drive Style: External Square Drive | Thread Direction: Right-Hand Thread | Material: Steel | Material Grade: Low Carbon Steel | Coating: Uncoated | Origin: Origin Undefined | Standards and Specifications: ASME B18.2.1 | NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.

Features & Specs

• Drive System : Square
• Exterior Finish : Unfinished
• Fastener Type : Hexagon Bolt
• Grade Rating : Low Carbon Steel
• Manufacturer Grade : Low Carbon Steel
• Screw Head Style : Square
• Thread Size : 1/2'-13
• Thread Style : Right Hand

Item details

• ASIN : B07VRCYD5Z
• Brand : ASPEN FASTENERS
• Fastener Type : Hexagon Bolt
• Item Weight : 30.4 Pounds
• Manufacturer : Aspen Fasteners
• Model : BO034-1213X134-000250
• Number Of Items : 1
• Part Number : BO034-1213X134-000250
• UPC : 698435033139
• Unit Count : 250.0 Count

Materials & Care

• Exterior Finish : Unfinished
• Material Type : Alloy Steel

Measurements

• Item Dimensions : 1.75 x 0.5 x 1.75 inches
• Item Weight : 30.4 Pounds
• Size Name : 1/2'-13 X 1-3/4'
• Thread Size : 1/2'-13
