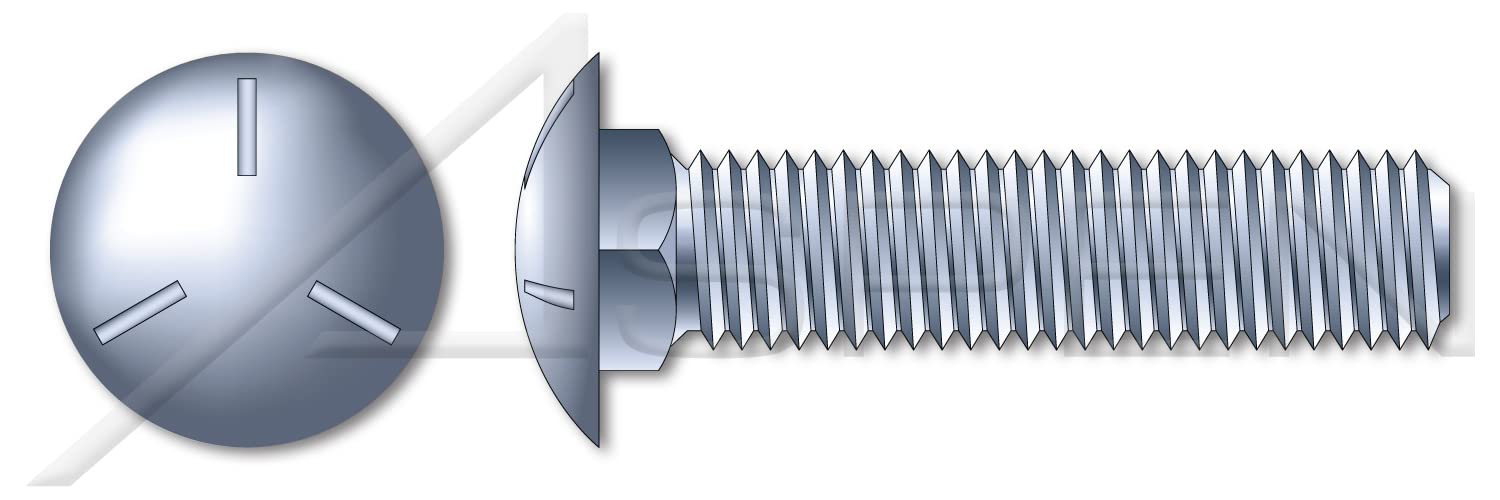

(200 pcs) 1/2'-13 X 3, Carriage Bolts, Round Head, Square Neck, Full Thread, Grade 5 Steel, Zinc

DIMENSIONAL ATTRIBUTES | Diameter (Nominal): 1/2' | Thread Pitch: 13 | Diameter (Dimension): 0.5' | Diameter (Minimum): 0.483' | Diameter (Maximum): 0.515' | Length (Nominal): 3' | Thread Length (Nominal): 2.719' | Neck Width: 0.515' | Neck Height: 0.281' | Head Diameter (Minimum): 1.032' | Head Diameter (Maximum): 1.094' | Head Height, Overall (Minimum): 0.25' | Head Height, Overall (Maximum): 0.27' | PRODUCT ATTRIBUTES | Category: Carriage Bolts | System of Measurement: Inch | Brand: Aspen Fasteners | Head Style: Round Head | Head Style Detail: Square Neck | Head Markings: Three radial lines 120 degrees apart and manufacturer ID | Thread Length: Full Thread | Thread Direction: Right-Hand Thread | Material: Steel | Material Grade: Grade 5 | Coating: Zinc Plated | Coating Color: Clear | Origin: Origin Undefined | Standards and Specifications: ASME B18.5 and SAE J429 | NB: Product images are copyrighted artistic representations which may not reflect the product's exact appearance, proportions and/or relative dimensions.

Features & Specs

• Exterior Finish : Zinc
• Fastener Type : Carriage Bolt
• Grade Rating : Grade 5
• Item Hardness : Grade 5
• Manufacturer Grade : Grade 5
• Screw Head Style : Round
• Thread Size : 1/2'-13
• Thread Style : Right Hand

Item details

• ASIN : B01AWR85NY
• Brand : ASPEN FASTENERS
• Fastener Type : Carriage Bolt
• Item Weight : 37.2 Pounds
• Manufacturer : Aspen Fasteners
• Model : AMBO004-1213X3-000200
• Number Of Items : 1
• Part Number : AMBO004-1213X3-000200
• UPC : 698435006416
• Unit Count : 200.0 Count

Materials & Care

• Exterior Finish : Zinc
• Material Type : Medium Carbon Steel

Measurements

• Item Dimensions : 3 x 0.5 x 3 inches
• Item Weight : 37.2 Pounds
• Size Name : 1/2'-13 X 3'
• Thread Coverage : Fully Threaded
• Thread Size : 1/2'-13
