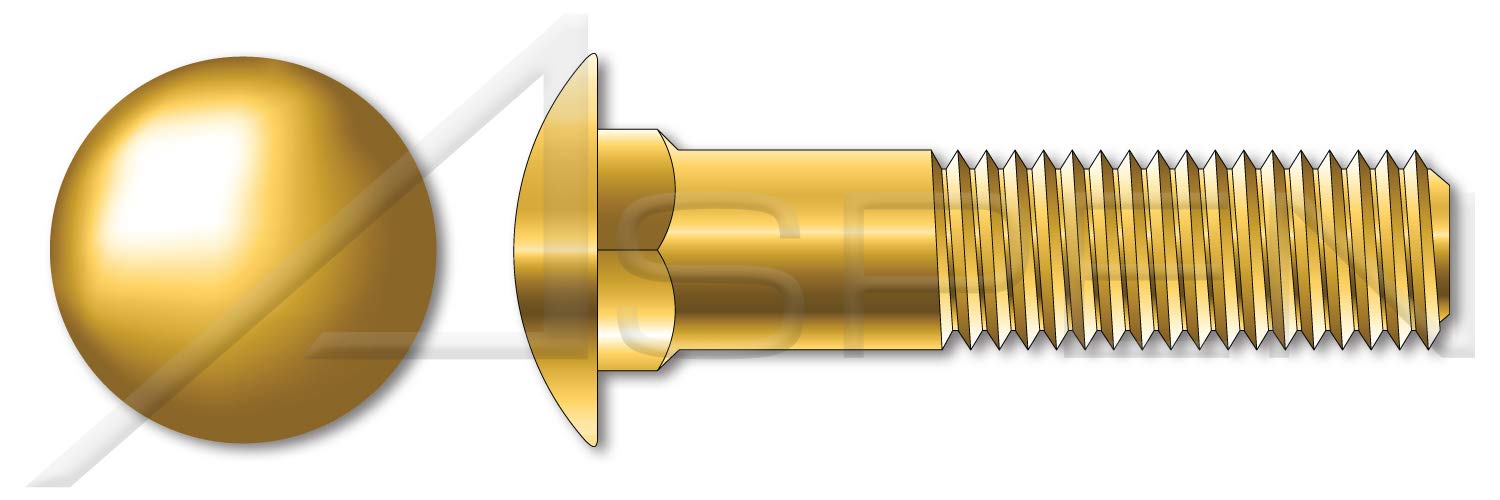

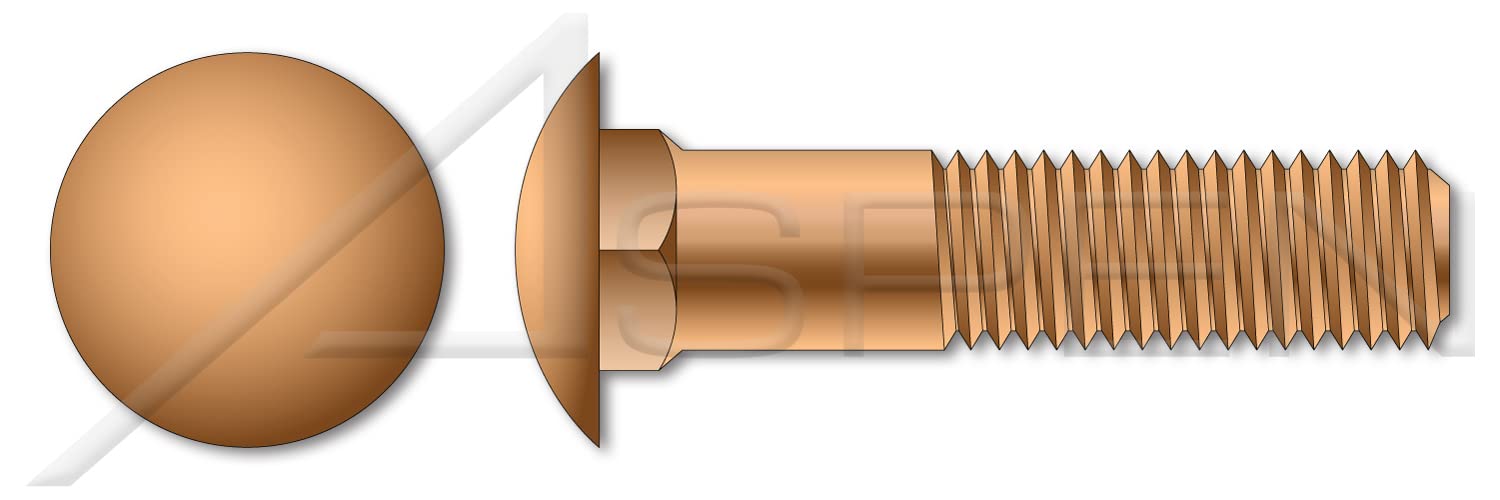

Name: (15 pcs) 1/2'-13 X 1-3/4', Carriage Bolts, Round Head, Square Neck, Silicon Bronze
Brand: ASPEN FASTENERS
SKU: WC260824FFEF4OYR
Price: 118.04 USD
Availability: InStock

(15 pcs) 1/2'-13 X 1-3/4', Carriage Bolts, Round Head, Square Neck, Silicon Bronze

$118.04 $303.96

Also known as coach bolts, are typically used to fasten metal to wood. The square neck under the head locks the bolt into place. Can be used as a security fastener. The smooth head prevents unfastening from the head side. Silicon Bronze: non-magnetic, corrosion resistant, and has good thermal and electrical conductivity. Offers superior corrosion resistant as compared to stainless steel and is stronger than brass.DIMENSIONAL ATTRIBUTES Diameter (Nominal): 1/2' Thread Pitch: 13 Diameter (Dimension): 0.5' Diameter (Minimum): 0.483' Diameter (Maximum): 0.515' Length (Nominal): 1-3/4' Thread Length (Nominal): 1.25' Neck Width: 0.515' Neck Height: 0.281' Head Diameter (Minimum): 1.032' Head Diameter (Maximum): 1.094' Head Height, Overall (Minimum): 0.25' Head Height, Overall (Maximum): 0.27'PRODUCT ATTRIBUTES Category: Carriage Bolts System of Measurement: Inch Brand: Aspen Fasteners Head Style: Round Head Head Style Detail: Square Neck Thread Length: Standard Thread Length Thread Direction: Right-Hand Thread Material: Silicon Bronze Material Grade: Standard Commercial Grade Coating: Uncoated Origin: Origin Undefined Standards and Specifications: ASME B18.5

Features & Specs
