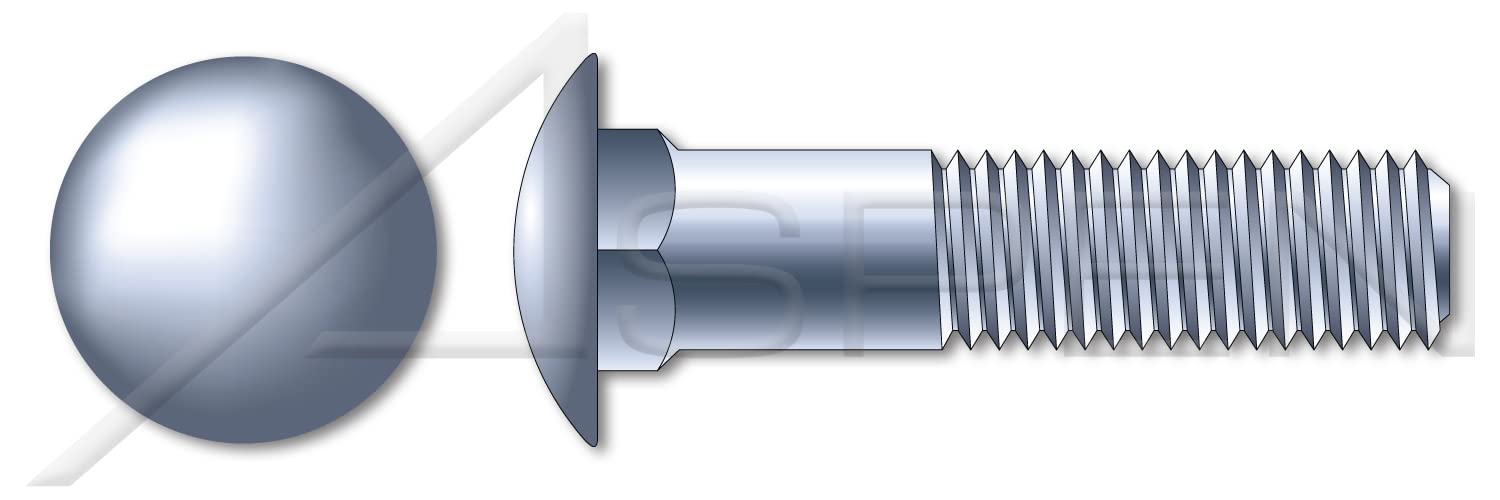

(210 pcs) 1/2'-13 X 7, Carriage Bolts, Round Head, Square Neck, Part Thread, A307 Steel, Zinc

Also known as coach bolts, are typically used to fasten metal to wood. The square neck under the head locks the bolt into place. ASTM A307 steel is a standard 'industrial spec' low carbon grade of steel. A307 steel fasteners have a minimum tensile strength of 60,000 pounds per square inch. Can be used as a security fastener. The smooth head prevents unfastening from the head side.DIMENSIONAL ATTRIBUTES Diameter (Nominal): 1/2' Thread Pitch: 13 Diameter (Dimension): 0.5' Diameter (Minimum): 0.483' Diameter (Maximum): 0.515' Length (Nominal): 7' Thread Length (Nominal): 1.5' Neck Width: 0.515' Neck Height: 0.281' Head Diameter (Minimum): 1.032' Head Diameter (Maximum): 1.094' Head Height, Overall (Minimum): 0.25' Head Height, Overall (Maximum): 0.27'PRODUCT ATTRIBUTES Category: Carriage Bolts System of Measurement: Inch Brand: Aspen Fasteners Head Style: Round Head Head Style Detail: Square Neck Head Markings: Material Grade Mark 'A307' Body Style: Undersized Body Thread Length: Part Thread Thread Direction: Right-Hand Thread Material: Steel Material Grade: A307 Steel Coating: Zinc Plated Coating Color: Clear Origin: Origin Undefined Standards and Specifications: ASME B18.5

Features & Specs

• Exterior Finish : Zinc
• Grade Rating : Grade 1
• Manufacturer Grade : Grade 1
• Screw Head Style : Round
• Thread Size : 1/2'-13
• Thread Style : Right Hand
• Thread Type : Unfastening

Item details

• ASIN : B0B86JR8P7
• Brand : ASPEN FASTENERS
• Item Weight : 75 Pounds
• Manufacturer : Aspen Fasteners
• Number Of Items : 1
• Part Number : BO010-1213X7-000210
• UPC : 698435948020
• Unit Count : 210.0 Count

Materials & Care

• Exterior Finish : Zinc
• Material Type : Low Carbon Steel

Measurements

• Item Dimensions : 7 x 0.5 x 7 inches
• Item Weight : 75 Pounds
• Size Name : 1/2'-13 X 7'
• Thread Coverage : Partially Threaded
• Thread Size : 1/2'-13
