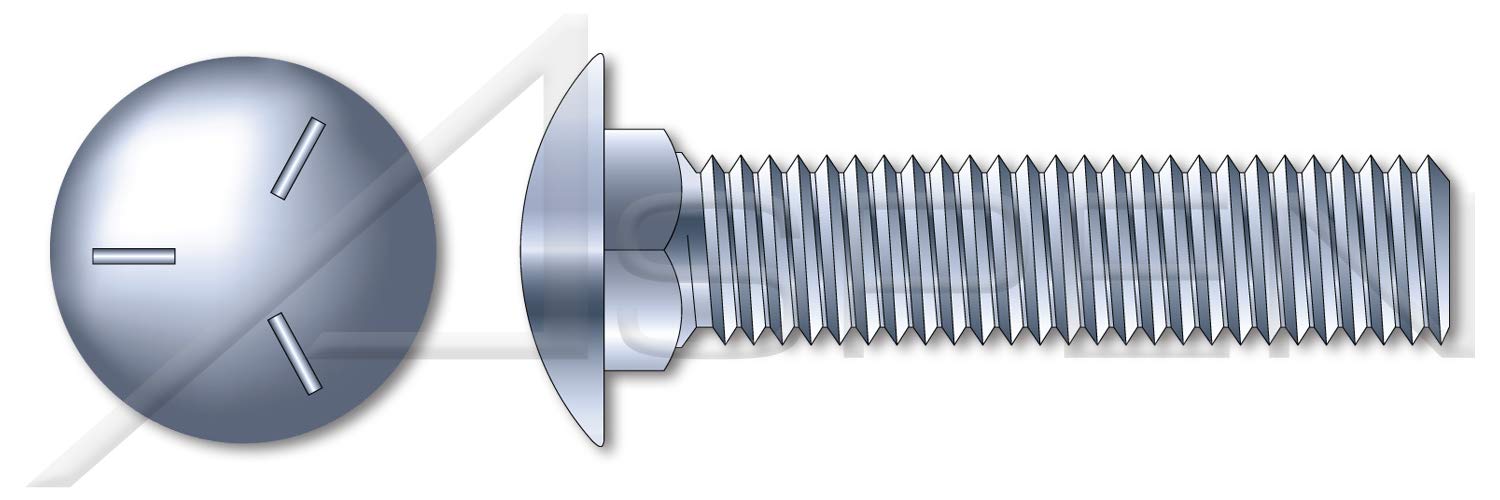

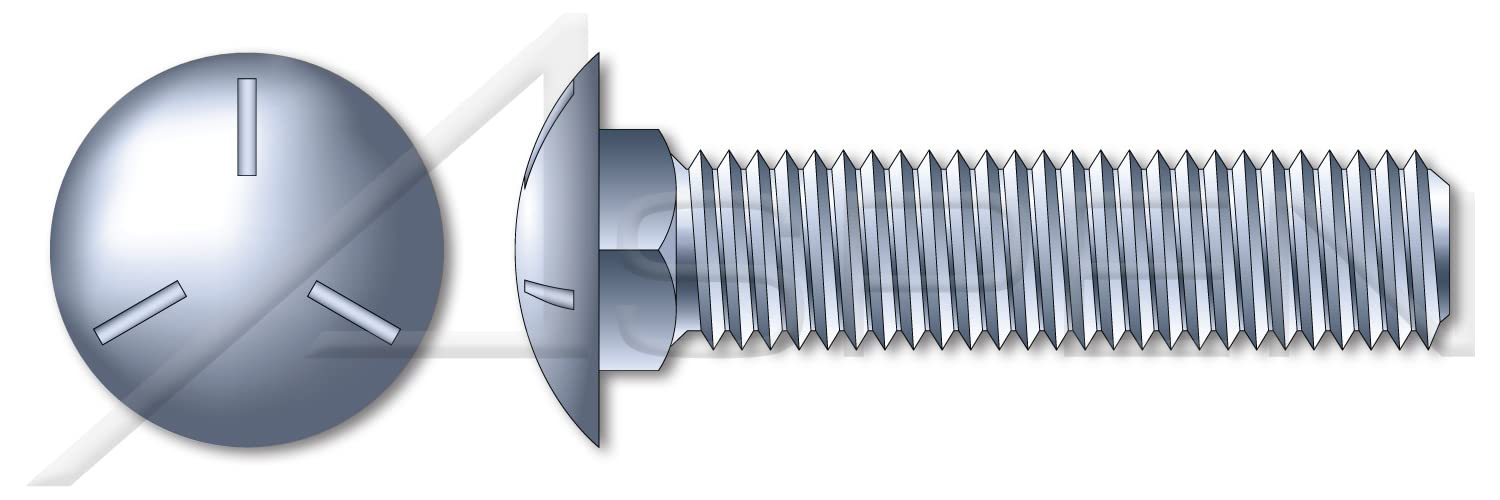

Name: (40 pcs) 1/2'-13 X 8-1/2', Carriage Bolts, Round Head, Square Neck, Full Thread, Grade 5 Steel, Zinc
Brand: ASPEN FASTENERS
SKU: J8260824F5GUI6HG
Price: 176.66 USD
Availability: InStock

(40 pcs) 1/2'-13 X 8-1/2', Carriage Bolts, Round Head, Square Neck, Full Thread, Grade 5 Steel, Zinc

$176.66 $477.79

Also known as coach bolts, are typically used to fasten metal to wood. The square neck under the head locks the bolt into place. The heads of grade 5 steel fasteners are typically marked with 3 raised radial lines. Grade 5 steel fasteners have a minimum tensile strength of 105,000 pounds per square inch. Can be used as a security fastener. The smooth head prevents unfastening from the head side.DIMENSIONAL ATTRIBUTES Diameter (Nominal): 1/2' Thread Pitch: 13 Diameter (Dimension): 0.5' Diameter (Minimum): 0.483' Diameter (Maximum): 0.515' Length (Nominal): 8-1/2' Thread Length (Nominal): 8.219' Neck Width: 0.515' Neck Height: 0.281' Head Diameter (Minimum): 1.032' Head Diameter (Maximum): 1.094' Head Height, Overall (Minimum): 0.25' Head Height, Overall (Maximum): 0.27'PRODUCT ATTRIBUTES Category: Carriage Bolts System of Measurement: Inch Brand: Aspen Fasteners Head Style: Round Head Head Style Detail: Square Neck Head Markings: Three radial lines 120 degrees apart and manufacturer ID Thread Length: Full Thread Thread Direction: Right-Hand Thread Material: Steel Material Grade: Grade 5 Coating: Zinc Plated Coating Color: Clear Origin: Origin Undefined Standards and Specifications: ASME B18.5 and SAE J429

Features & Specs
